Шаблон
|
Модель
|
Размер решетки
（Дл.X Шир.）
|
Размер подложки
(Дл.X Шир）
|
Ползучесть
|
|
мм
|
мм
|
|
|
BF-350-(9)KA(**)
|
Æ9.0
|
Æ10.0
|
|
|
BF350-(10)KA(**)
ZF1000-(10)KA(**)
|
Æ9.0
|
Æ10.0
|
|
|
BF350-(15)KA(**)
|
Æ14.0
|
Æ15.0
|
|
|
ZF1000-(15)KA(**)
|
Æ14.0
|
Æ15.0
|
|
|
|
BF350-(20)KA(**)
ZF1000-(20)KA(**)
|
Æ19.0
|
Æ20.0
|
|
|
ZF350-(20)KA(**)
|
Æ19.0
|
Æ20.0
|
|
|
ZF1000-(7-B10)KA(**)
|
Æ7.0
|
Æ9.9
|
|
|
ZF1000-(13)KA(**)
|
Æ12.0
|
Æ13.0
|
|
|

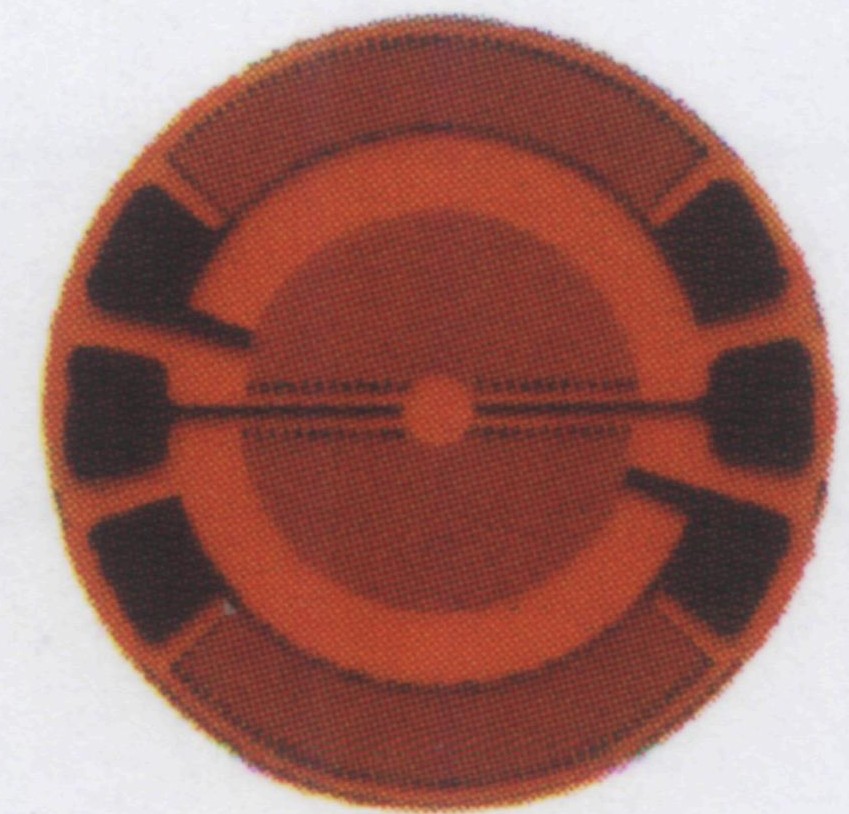

ZF1000-(9-B13)KA(**)-D
|
Æ9.4
|
Æ13.0
|
|
|
ZF1000-(14)KA(**)
|
Æ13.0
|
Æ14.0
|
|
|
ZF1000-(14)KA(**)-D
|
Æ12.8
|
Æ14.0
|
|
|
ZF1650-(10-B13)KA(11)-D
|
Æ9.8
|
Æ13.0
|
|
|
ZF2000-(17)KA(**)
|
Æ13.6
|
Æ14.0
|
|
|
ZF1500-(10)KA(**)
|
Æ16.8
|
Æ17.0
|
|
|
ZF1500-(11)KA(**)
|
Æ9.0
|
Æ11.0
|
|
|
ZF2000-(18)KA(**)
|
Æ17.8
|
Æ18.0
|
|
|
|
ZF350-(6)KA-B(**)
|
Æ5.3
|
Æ6.0
|
|
|
ZF1000-(10)KA-B(**)
|
Æ9.0
|
Æ10.0
|
|
|
ZF500-(6)KA-B(**)
|
Æ5.3
|
Æ6.0
|
|
|
ZF2000-(12)KA-B(**)
|
Æ11.8
|
Æ12.0
|
|
|
|

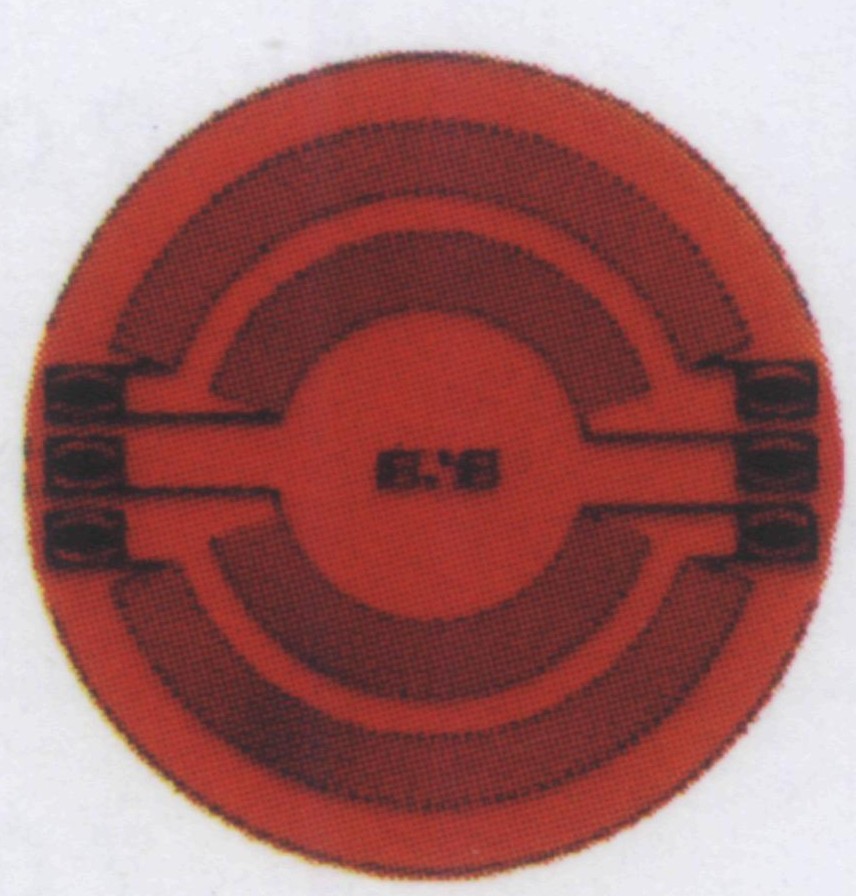

ZF1500-(13-B16)KA-C(**)
|
Æ13.5
|
Æ13.5
|
|
|
ZF350-(20)KA-C(**)
|
Æ19.0
|
Æ20.0
|
|
|
ZF1000-(20)KA-C(**)
BF350-(20)KA-C(**)
|
Æ19.0
|
Æ20.0
|
|
|
ZF2000-(13-B16)KA-C(**)
|
Æ13.5
|
Æ16.0
|
|
|
|
ZF1000-(7-B11)KB(**)-D
|
Æ6.7
|
Æ10.9
|
|
|
|
ZF350-2EB-A-M**
|
1.8X2.2
|
8.4X7.3
|
|
|
|
BF350-2EB-B(**)
ZF1000-2EB-B(**)
|
2.3X2.7
|
8.6X7.4
|
|
|
|
ZF350-2EB(**)
|
1.8X2.2
|
8.5X7.3
|
|
|
BF350-2EB(**)
ZF1000-2EB
|
2.3X2.7
|
8.6X7.1
|
|
|
|
|
|
BF(BAM,BHB)350-1FG-BL0(**)-T*
|
1.5X.8
|
13.5X6.9
|
|
|

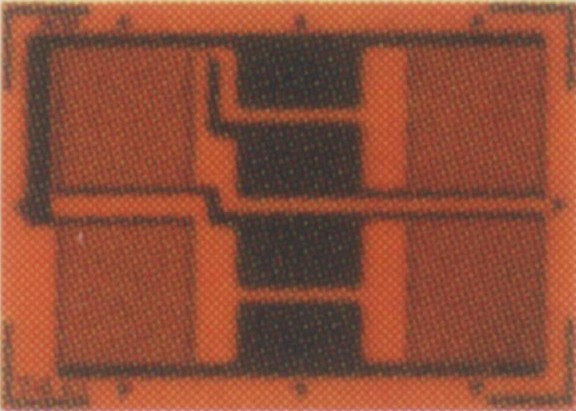

ZF(BAM,BHB)350-1FG-BL*M23-N*
|
1.5X2.3
|
(L1+3.8)X6.2
|
|
|
ZF1000-1.5FG-BL0-M23-T*
|
1.5X2.8
|
14.1X6.9
|
|
|
ZF(BAM,BHB)1000-2FG-BL*M23-N*
|
2.1X2.8
|
(L1+4.3)X6.9
|
|
|
BF(BAM,BHB)350-3FG-BL0(**)-T*
ZF(BAM,BHB)1000-3FG-BL0-M23-T*
|
3.1X2.8
|
15.3X6.8
|
|
|
ZF2000-2FG-BL0-M23-T*
|
2.0X3.3
|
14.6X7.8
|
|
|
|
BF(BAM,BHB)350-3FG-AL*(**)-N*
|
3.1X3.2
|
(L1+6.1)X8.5
|
N2,T4,T6,T8
|
|
ZF(BAM,BHB)1000-3FG-AL*-M23-N*
|
|
BF(BAM,BHB)350-3FG-AL4(**)-N*
ZF(BAM,BHB)1000-3FG-AL4(**)-N*
|
3.0X2.1
|
20.5X6.8
|
N6,T6
|
|
|

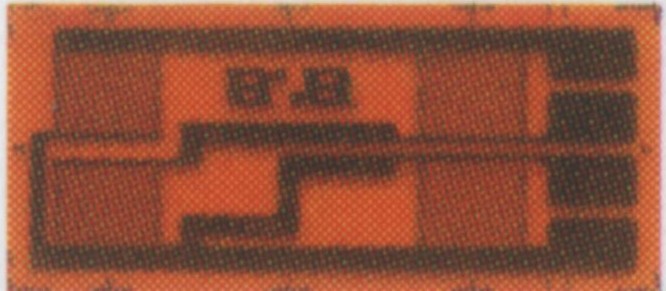

ZF(BAM,BHB)350-1FG-L0-(**)-T*
|
1.5X2.4
|
14.4X6.4
|
|
|
BF(BAM,BHB)350-2FG-L0-(**)-T*
|
2.0X2.7
|
14.6X6.9
|
|
|
ZF(BAM,BHB)350-2FG-L*-(**)-T*
|
2.0X2.5
|
(L1+4.5)X6.4
|
|
|
ZF(BAM,BHB)1000-3FG-L*-M(**)-N*
|
3.0X2.5
|
|
|
|
|
BF(BAM,BHB)350-3FG-CL0-(**)-T*
ZF(BAM,BHB)1000-3FG-CL0-(**)-T*
|
3.1X2.8
|
15.4X7.0
|
N2,T2,T4
|
|
ZF(BAM,BHB)350-1FG-CL*-M**-N*
|
1.5X2.3
|
(L1+3.1)X6.1
|
|
|
|
BF(BAM,BHB)350-1FG-DL0(**)-T*
|
1.5X2.5
|
13.9X6.5
|
N2,T2,T4
|
